Auro 3D Speaker Configuration: Optimizing Immersive Audio for Cinematic Experience

Auro 3D is an advanced spatial audio technology developed by Auro Technologies that enhances traditional surround sound by adding dedicated height and overhead channels to create a truly three-dimensional sound field.

Unlike Dolby Atmos or DTS:X, which rely heavily on object-based audio with flexible speaker placement, Auro 3D is based on a layered approach to sound reproduction, maintaining a strong emphasis on channel-based audio and fixed speaker positions. This configuration typically includes a traditional 5.1 or 7.1 surround base, a height layer of speakers mounted above the listener at ear level, and a top layer (or sky channel) of speakers placed in the ceiling to simulate overhead audio.

The result is a more natural reproduction of how sound behaves in real environments, providing a vertical dimension that greatly enriches the auditory experience, especially in cinematic applications. Auro 3D's standardized speaker layout offers reproducible, consistent audio imaging, making it an appealing option for professional cinemas and high-end home theaters alike.

Understanding the Three-Layer Design of Auro 3D

The foundation of Auro 3D’s immersive audio lies in its distinctive three-layer speaker configuration: the Surround Layer, the Height Layer, and the Top (Sky) Layer.

Speaker Configuration Small Or Large

The Surround Layer consists of standard front, center, side, and rear speakers placed at ear level, forming a conventional 5.1 or 7.1 setup. Above this, the Height Layer includes additional speakers mounted on the walls, typically one meter above ear level, and includes front height, side height, and rear height channels that add vertical envelopment.

Finally, the Top Layer introduces ceiling-mounted speakers—usually two or four—designed to deliver direct overhead sound, simulating effects like rain, aircraft, or ambient sky noise with remarkable realism. This stacked layering technique differentiates Auro 3D from purely object-based systems, as it preserves a fixed channel architecture while still delivering a convincing 3D auditory space.

Standard Auro 3D Speaker Layouts and Channel Distribution

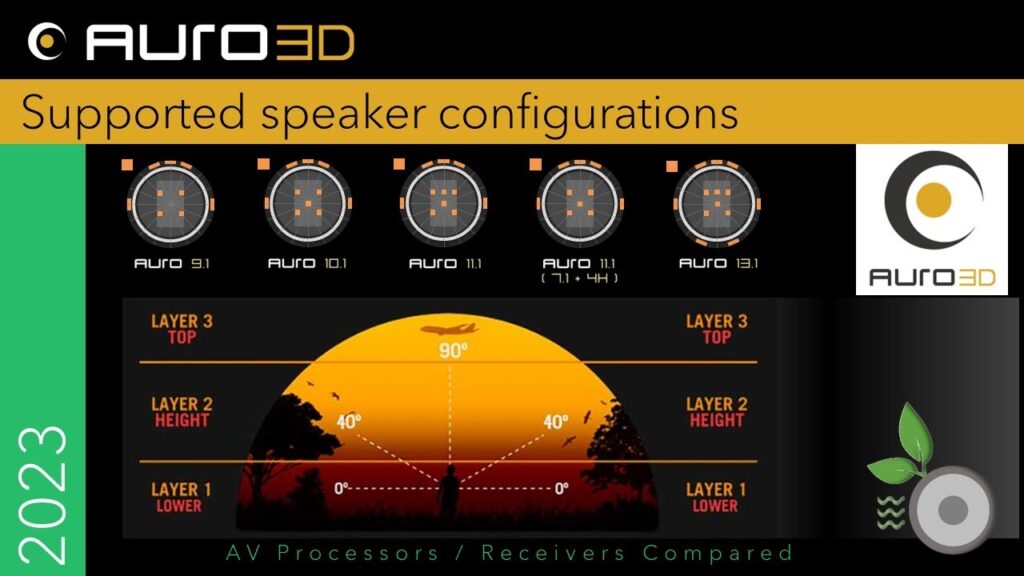

Auro 3D offers several standardized configurations, the most common being Auro-11.1, Auro-13.1, and the premium AuroMax setup. Auro-11.1 builds upon a 7.1 surround base and adds four height channels and two overhead channels.

Auro-13.1 expands this with additional front height and front wide speakers for enhanced front-stage precision and envelopment. AuroMax, designed for large theaters, supports up to 32 physical speaker channels, including multiple overhead and height arrays for ultra-high-resolution spatial immersion.

Speaker Configuration Software

Each layout strictly defines speaker angles and elevation requirements to ensure compatibility and uniform audio performance across installations. For professional deployment, adherence to these geometric speaker placements is crucial for maintaining sound coherence and avoiding imaging artifacts, making Auro 3D a highly structured but scalable solution for immersive audio environments.

Integration and Compatibility with Existing Surround Sound Systems

One of Auro 3D’s key advantages is its backward compatibility with conventional audio formats such as stereo, 5.1, and 7.1, thanks to its base layer compatibility.

The system uses Auro-Codec, which embeds height and overhead channels within a standard 5.1 or 7.1 audio stream, allowing seamless transmission over existing digital audio interfaces like HDMI or Blu-ray without requiring new infrastructure. During playback, an Auro-enabled decoder extracts the additional layers and routes them to the appropriate height and ceiling speakers.

This hybrid encoding method ensures that content mixed in Auro 3D can still be enjoyed on traditional systems, albeit without the full 3D effect. Moreover, integration with modern AV receivers and processors from brands like Barco, Denon, and Marantz now makes it feasible for enthusiasts to adopt Auro 3D in home theater environments without needing commercial-grade equipment.

Speaker Configuration Valorant

Auro 3D Speaker Configuration: A Comprehensive Setup Guide

What is the optimal speaker placement for Auro-3D audio configuration?

Speaker Layout and Channel Configuration for Auro-3D

The optimal speaker placement for Auro-3D relies on its unique three-layer soundstage: the traditional horizontal layer, a height layer, and a top layer (also called the Voice of God channel). This configuration creates a fully immersive audio experience by adding vertical dimensionality to sound. Auro-3D typically uses a 9.1 or 13.1 channel setup, depending on room size and performance level.

The horizontal layer follows traditional 5.1 or 7.1 speaker placement, with front left and right speakers positioned at ±30° from the listener, center channel directly in front, and surround speakers at ±100–120°. The height layer is a defining feature, consisting of five speakers: two front height, two side height, and one rear height.

These are placed approximately 1.8 to 2.4 meters (6 to 8 feet) above the floor, midway between the front and surround arrays. Their angles align vertically with the horizontal speakers. The top layer includes a single upward-firing or ceiling-mounted speaker at the center of the room, directly above the listener, providing ambient and atmospheric effects from directly overhead to complete the 3D sound envelope.

Speaker Wire Configuration

1. Front layer: place left, center, and right speakers at ear level, angled toward the primary listening position, matching standard 5.1 setups.
2. Height layer: install front height, side height, and rear height speakers above the main plane, aligned vertically with their corresponding horizontal speakers.
3. Top layer: position one ceiling-mounted speaker directly over the main seat to deliver overhead sound effects accurately and cohesively.

Room Acoustics and Speaker Positioning Considerations

Achieving optimal Auro-3D performance requires careful attention to room acoustics and speaker placement geometry. Unlike flat surround setups, Auro-3D depends on precise vertical and horizontal alignment to maintain sound coherence across layers. The listening room should ideally be rectangular with minimal obstructions and symmetrical speaker placement relative to the central axis.

Reflections and standing waves can distort the vertical imaging, so acoustic treatment—such as bass traps, diffusers, and absorption panels on side walls and ceiling—is highly recommended. Speakers in the height and top layers must be positioned to ensure sound reaches the listener without obstruction or phase issues. The height layer speakers should be mounted at a consistent elevation and angled downward slightly to focus sound at the listening area.

For the top layer, direct-radiating ceiling speakers are preferred over reflected sound from up-firing modules, especially in rooms with high ceilings or acoustic irregularities. Room calibration using Auro-Codec or compatible AV processors helps fine-tune delays, levels, and equalization to match the speaker layout.

1. Ensure uniform speaker height for the height layer and avoid asymmetrical placement to preserve balanced imaging.
2. Treat reflective surfaces to minimize early reflections that degrade layer separation and depth perception.
3. Use room correction systems specifically designed for Auro-3D to calibrate time alignment and volume levels across all channels.

Recommended Speaker Types and Installation Methods

Choosing the right speaker types and installation methods significantly affects Auro-3D performance. All speakers should have similar timbre and frequency response to maintain tonal consistency across layers. For the front stage, high-quality direct-radiating speakers with wide dispersion are ideal. Height and top layer speakers can be in-ceiling, in-wall, or on-wall types, but must provide wide vertical dispersion to cover the sweet spot.

Speaker Wiring Configurations

In-ceiling speakers are often used for the top layer and height layer when architectural integration is desired. Installation must follow Auro-3D’s technical guidelines: height speakers should not be placed too close to walls or corners to avoid bass buildup and comb filtering. Angled mounting brackets help direct sound toward the listener.

For the top center speaker, a dedicated upward-firing unit is acceptable in smaller rooms, but a ceiling-mounted direct-radiating speaker yields better clarity and localization. Room layout may require adjustments, but the priority is maintaining angular precision and minimizing path length differences between speakers and the primary seat.

1. Select timbre-matched speakers across all channels to ensure seamless sound movement between layers.
2. Use in-ceiling or wall-mounted speakers for height and top layers, ensuring proper angling and placement clearance from boundaries.
3. Verify speaker dispersion patterns and sensitivity ratings to maintain uniform coverage and output across the 3D sound field.

What Is the Required Speaker Count for an Auro-3D Setup?

The required speaker count for an Auro-3D setup typically ranges from 10 to 13 or more, depending on the specific configuration and room size.

Unlike traditional surround sound formats that focus only on horizontal sound placement, Auro-3D introduces a vertical dimension by incorporating height and overhead channels. This creates a three-dimensional sound field that enhances immersion. The standard configuration, known as Auro-11.1, includes 11 full-range speakers plus a dedicated subwoofer.

However, expanded setups like Auro-13.1 add even more speakers to further enrich the spatial experience. These configurations allow sound engineers to place audio elements not only around the listener but also above, contributing to a more natural and enveloping environment.

Core Speaker Layout in Auro-3D

1. The foundation of Auro-3D begins with a traditional 5.1 surround setup, which includes front left, center, front right, surround left, and surround right speakers, along with a subwoofer for low-frequency effects. This horizontal layer ensures compatibility with existing stereo and surround content.
2. Auro-3D adds a height layer consisting of five speakers: front height left, front height center, front height right, and rear height left and right. These are mounted above the main surround speakers, typically at a 40-degree elevation, to produce a sense of vertical expansion and create a sound dome.
3. An additional overhead channel with one or more ceiling-mounted speakers is used in the full Auro-11.1 or Auro-13.1 configurations. Placed directly above the listening area, this overhead speaker reproduces ambient and atmospheric effects, completing the three-dimensional audio experience.

Differences Between Auro-11.1 and Auro-13.1 Setups

1. Auro-11.1 is the standard immersive configuration, consisting of the 5.1 base layer, the five height speakers, and a single overhead speaker, making it a total of 12 physical speakers including the subwoofer. This setup is designed for medium to large home theaters and commercial cinemas.
2. Auro-13.1 expands on this by adding two extra height speakers in the rear, increasing the height layer from five to seven speakers. This provides more precise sound localization at the sides and rear, improving the vertical envelopment and dimensional accuracy of the audio field.
3. The additional speakers in Auro-13.1 require more amplifier channels and careful room calibration, but they yield a denser and more cohesive 3D soundscape. This makes Auro-13.1 particularly suitable for larger rooms or premium installations where audio precision is critical.

Scalability and Room Compatibility

1. Auro-3D systems are designed to be scalable, meaning they can adapt to different room sizes and speaker availability. Even if a full Auro-11.1 or Auro-13.1 setup isn't feasible, Auro-3D supports downmixing, allowing partial speaker configurations to still deliver an enhanced 3D effect based on available hardware.
2. Proper speaker placement is crucial for maintaining the integrity of the 3D audio field. For example, height speakers should be installed at consistent elevations and angles, and overhead speakers should be centered over the primary listening position to ensure balanced sound distribution.
3. Room acoustics also play a significant role. Reflections, absorption, and room shape can affect how well the vertical layers are perceived. Acoustic treatment, speaker calibration using room correction software, and adherence to layout guidelines are essential to achieving optimal Auro-3D performance.

What is the optimal speaker setup for Auro-3D audio configuration?

The optimal speaker setup for Auro-3D audio configuration is a layered approach that enhances spatial immersion by incorporating height and overhead channels in addition to traditional surround sound elements.

Auro-3D, developed by Auro Technologies, is based on three distinct layers: the horizontal layer (surround), the height layer, and the overhead (top) layer. This configuration creates a more realistic and enveloping sound field by adding vertical dimensionality to audio reproduction.

The most common and effective setup is the 9.1 or 10.1 base configuration, combined with additional height and top speakers, resulting in a 9.1+4+2 or 10.1+5+3 setup. This arrangement allows sound engineers to place audio objects not just around the listener but also above, offering a more natural and three-dimensional auditory experience compared to traditional 5.1 or 7.1 systems.

Core Horizontal Speaker Layout (9.1 Surround Base)

1. The horizontal layer forms the foundation of the Auro-3D setup, beginning with a traditional front soundstage using Left, Center, and Right speakers, supplemented by Surround Left and Surround Right channels. This is extended to include four additional surround speakers: Back Surround Left, Back Surround Right, and two wide speakers placed between Front and Surround positions (Wide Left and Wide Right), totaling nine speakers in the horizontal plane.
2. A subwoofer (.1) is placed strategically to handle low-frequency effects, typically in a location that avoids room mode issues, such as near a front corner or using multiple subs for more even bass distribution.
3. Precise speaker placement and calibration are essential, with front speakers forming a 30-degree angle from the listening position, surround speakers at 110 degrees, wides at 60 degrees, and back surrounds at 150 degrees to ensure accurate sound localization and a seamless audio field.

Height Layer Configuration (4 to 5 Speakers)

1. The height layer adds a new dimension by placing speakers above the primary horizontal plane, typically mounted on the front and side walls, 1 to 2 meters above ear level. This layer usually includes Height Front Left and Height Front Right, Height Center, and sometimes Height Surround Left and Right.
2. In a 4-height configuration, the Height Center is often omitted, using only peripheral height speakers. For a 5-height setup, the added center reinforces vertical imaging directly above the screen and supports vertical dialogue movement.
3. These speakers are crucial for effects like rain, helicopters, or ambient atmospheres that originate above the listener but are not directly overhead, helping to create a sense of vertical space without relying solely on the top layer.

Overhead (Top) Layer and Speaker Positioning

1. The top layer consists of speakers mounted directly in the ceiling, positioned above the listener and the primary soundstage. The standard configuration includes two Top Front and two Top Rear speakers, though some setups use three (adding a Top Center) for greater precision.
2. These overhead speakers are specifically tasked with reproducing sounds that originate from directly above, such as flying objects or ambient sky noise, resulting in a full 3D sound bubble that envelops the listener from all directions, including vertically.
3. Speaker angles for the top layer should be carefully calibrated: Top Front at about 25–30 degrees above the listener and Top Rear at a similar elevation behind, ensuring minimal comb filtering and optimal dispersion for a coherent, immersive effect.

Frequently Asked Questions

What is Auro 3D speaker configuration?

Auro 3D speaker configuration is an immersive audio technology that adds height and overhead channels to traditional surround sound. It uses a three-layer sound design: a base layer (similar to 5.1), a height layer, and an overhead layer. This creates a more realistic, natural sound environment by reproducing sound in three dimensions, enhancing audio depth and spatial awareness in movies and music.

How many speakers are needed for Auro 3D?

Auro 3D typically requires between 10 to 13 speakers for full implementation. A basic Auro-11.1 setup includes front, side, and rear surrounds, height speakers, and a single overhead speaker. Higher configurations like Auro-13.1 add extra height front speakers and a second overhead speaker. The exact number depends on the room size and desired audio precision, ensuring complete 3D sound coverage.

Can Auro 3D work with existing AV receivers?

Auro 3D requires a compatible AV receiver or external decoder that supports the format. Many modern AV receivers from brands like Marantz and Denon include Auro-3D decoding. If your receiver doesn’t support it natively, you can use an external Auro-3D decoder with a preamp. Firmware updates have added Auro-3D support to some older models, so check manufacturer specifications before upgrading equipment.

How does Auro 3D differ from Dolby Atmos?

Auro 3D uses a layered approach with horizontal, height, and overhead channels, focusing on vertical sound staging. Dolby Atmos uses object-based audio, placing individual sounds anywhere in 3D space, including overhead.

While Atmos offers more precise sound placement, Auro 3D emphasizes natural sound immersion through channel-based layering. Both enhance audio, but Auro 3D provides a more structured, venue-like acoustic experience compared to Atmos’s dynamic flexibility.
